UV spray code detection and paging machine
Current model: IF-IPM203CT-400x1200/120-UV-Z
On the basis of the original standard platform, the relevant configuration has been upgraded, with faster speed, stronger stability and richer configuration collocation. The fuselage is made of stainless steel material or carbon steel baking varnish for a fully enclosed package design, which is more textured and superior.
Product Classification:
Key words:
paging machine
- Product Description
-
On the basis of the original standard platform, the relevant configuration has been upgraded, with faster speed, stronger stability and richer configuration collocation. The fuselage is made of stainless steel material or carbon steel baking varnish for a fully enclosed package design, which is more textured and superior.
On the basis of the original standard platform, the relevant configuration has been upgraded, with faster speed, stronger stability and richer configuration collocation. The fuselage is made of stainless steel material or carbon steel baking varnish for a fully enclosed package design, which is more textured and superior.
Standard configuration Optional Configuration Friction type paging discharge Retension detection function High-speed conveyor belt TIJ/Uv Jet Printing/Laser Coding_Third Party Automatic collection Plasma Processors-Third Parties Automatic rejection visual inspection UV high temperature drying negative pressure adsorption Online automatic labeling Counting function automatic correction Support customization
Installation method
Integral hemming cabinet body
Body material
Stainless Steel
Overall dimension
Length L * Width W * Height H ≈
3760 × 800 × 1000mm
Input power
220VAC
Equipment weight
About 300KG
Collection Method
Automatic stacking collection
Conveyor belt width
400mm
Control mode
Ifeeder dedicated controller
or PLC control
Input power
About 800W
Paging machine only, excluding coding machine
Efficiency
According to the actual product size
Post-test decision
Belt running speed
0-120 m/min min
Transmission mode
Variable frequency speed control or DC brushless speed control
Conveyor belt length optional
1200mm
Negative pressure adsorption optional
Medium/high pressure fan
Adapt to product size range
Length L * Width W * Thick THK ≈
(60-300)×(30-400)×(0.05-3)mmWarranty period: 1 year (except for wearing parts)
Vulnerable parts: paging friction belt and paging friction belt
Random accessories: power cord 1, paging friction pressure belt 1

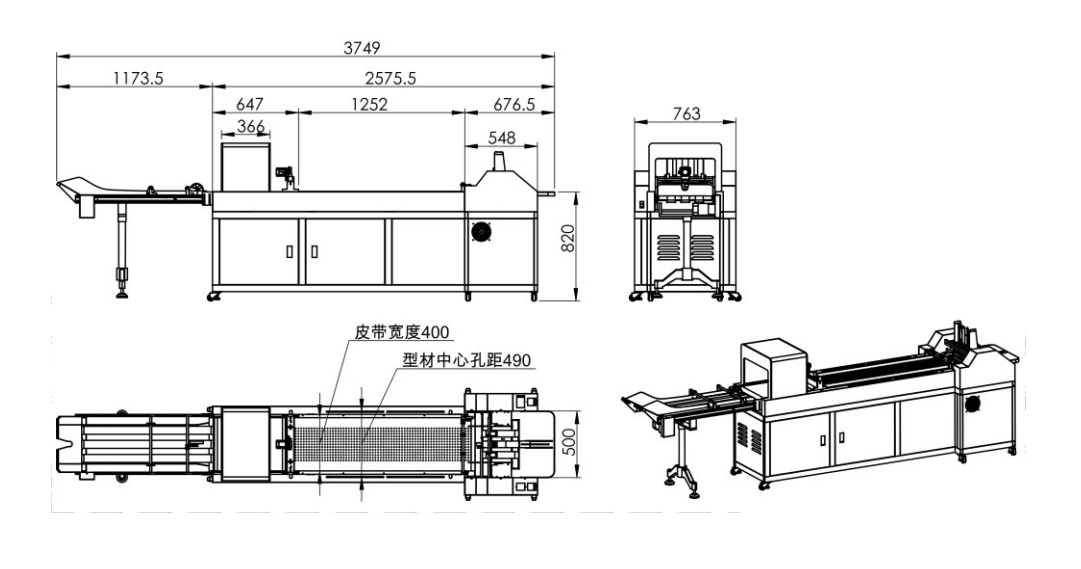

NOTE: The dimensional drawings referenced are for the old model nose, the in stock has been updated.
